Revolutionized Undersea Connectivity with Advanced Marine Solutions
With proven expertise in engineering and designing solutions for harsh undersea environments, DEEPLINC is a reliable partner in delivering cutting-edge technology for diverse industries such as government, military, oil and gas, telecommunications, and oceanography. Specializing in supplying wet-mateable electric, optic, and hybrid electric-optic cable connections, DEEPLINC is your gateway to superior undersea connectivity solutions.
We at Gardner Technologies will lead you to explore how DEEPLINC’s cutting-edge solutions can elevate your undersea operations. Our collaboration ensures access to advanced marine systems designed to thrive in the most challenging environments.
Ensure your detailed undersea project needs are met
DEEPLINC: Extensive expertise in the engineering and design of subsea solutions
DEEPLINC offers a wide range of solutions that are specifically designed for harsh undersea environments. These products include their patented underwater composite connection system, underwater packaging of fiber optic, electrical components, material selection, corrosion compatibility, and failure analysis.
In addition, DEEPLINC has capabilities in new product development, test and qualification services, project management, and business development.

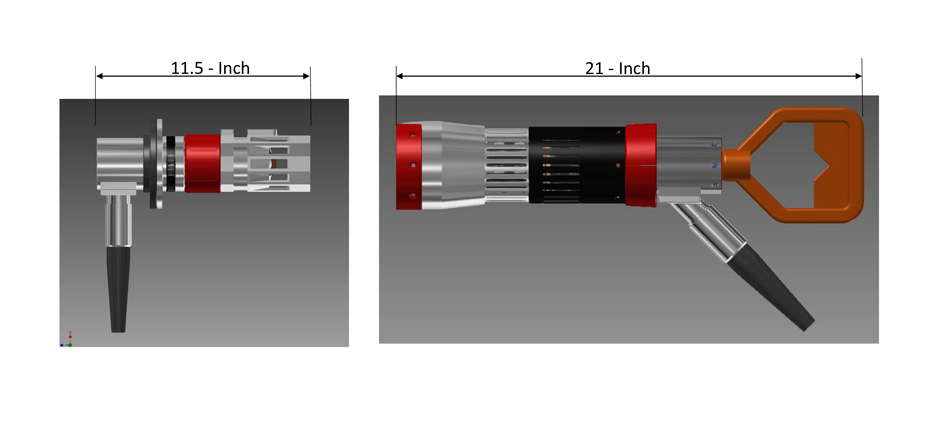

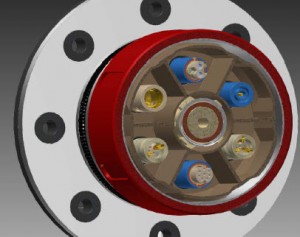

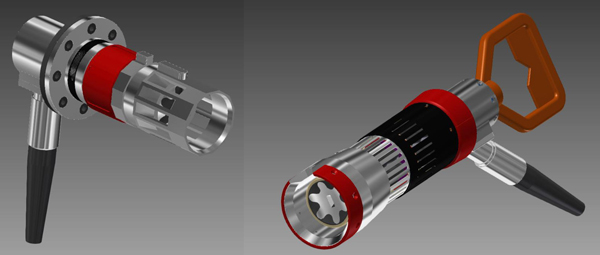

DEEPLINC Hybrid Optic-Electric DL5500
DL5500 Features
- Full Mechanical Separation:
Contacts engage in fully isolated oil volumes, independent of the connector interface engagement oil volumes. - Barrier Isolation:
Electrical and optical contact chambers are barrier-isolated before and after engagement. - Contact Contamination Elimination:
Eliminates contact contamination and cross-contamination factors. - Enhanced Life Cycle:
Increased and separated oil supplies for optical and electrical insert contacts result in an extended life cycle. - Plug Electrical Pins:
Eliminates exposure of non-insulated plug electrical pins. - Redundant Actuation Mechanisms:
Robust and redundant actuation mechanisms ensure reliability. - Configuration Compatibility:
Similar interface and configuration for replacing existing products.
DL5500 Ratings:
-
Depth Rating: 7,000m (23,000 ft.)
-
Design Life: 25 Years
-
Operating Temperature: -5ᵒC to +45ᵒC (23ᵒF to 113ᵒF)
-
Storage Temperature: -25ᵒC to +60ᵒC (-13ᵒF to 140ᵒF)
-
Optical Performance: Maximum optical insertion loss of 0.5dB per channel, maximum optical back reflection of -45dB per channel.

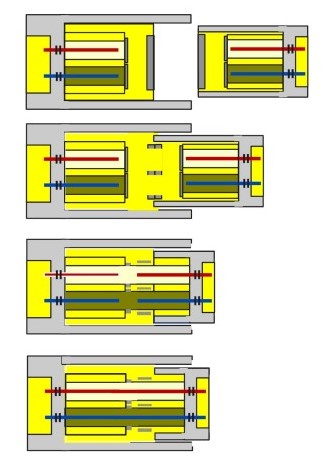

DL5500 Wet-Mate Connector Design:
Separation of mechanical engagement from contact engagement oil chambers, where by design, the connector engagement chamber is separate from the contact chamber.
Isolation of electrical and optical contact chambers before, during, and after engagement.
Fully separated oil supplies for optical and electrical contacts in composite WMC applications.
No exposed or non-insulated electrical pins. Emphasis on redundancies in mechanisms.
| Optical Contact | ||
| Electrical Contact | ||
| Optical Contact Chamber | ||
| Electrical Contact Chamber | ||
| Mechanical Engagement Chamber Oil |
Hybrid, Wet-Mate, ROV Operable, Electro-Optical Connectors:
